Трохфазны трохправадны насценны актыўны гарманічны фільтр
У якасці даверанага пастаўшчыка ў Кітаі GEYA прапануе прасунуты трохфазны трохправодны актыўны гарманічны фільтр, які прадстаўляе высокую прадукцыйнасць, даўгавечнасць, лёгкую ўстаноўку і цудоўнае змякчэнне гарманічных. Гэты фільтр ідэальна падыходзіць для розных галін прамысловасці. Дашліце запыт ніжэй і выпрабуйце нашу лепшую хуткасць рэагавання на працягу 24 гадзін!

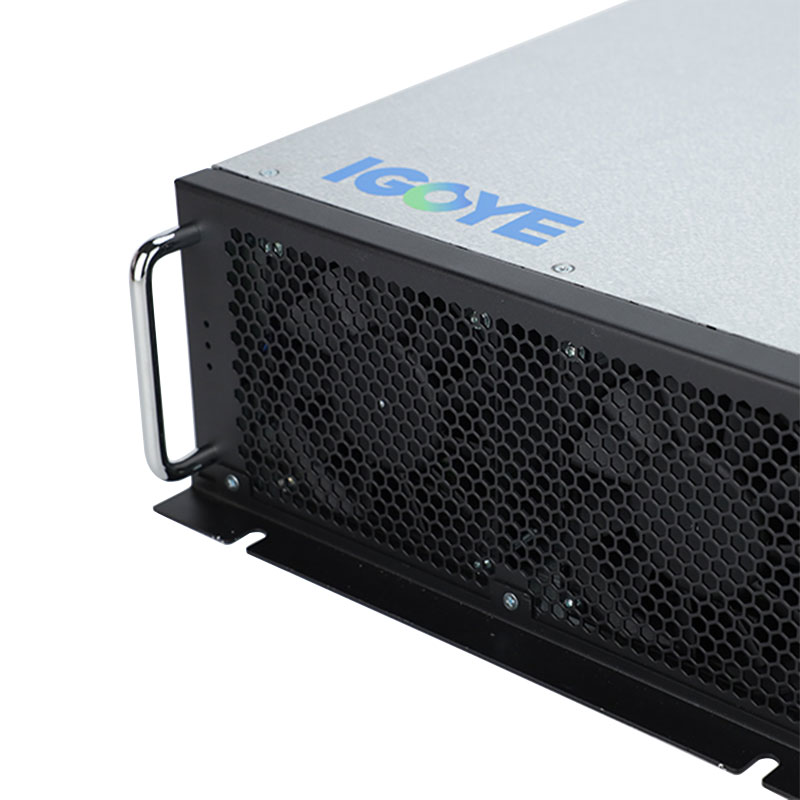

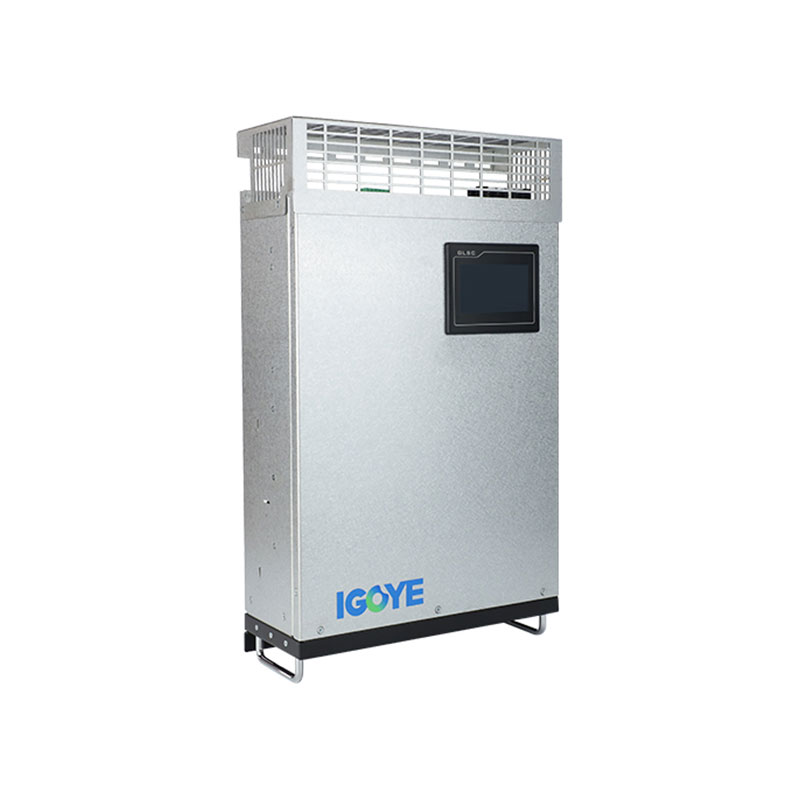

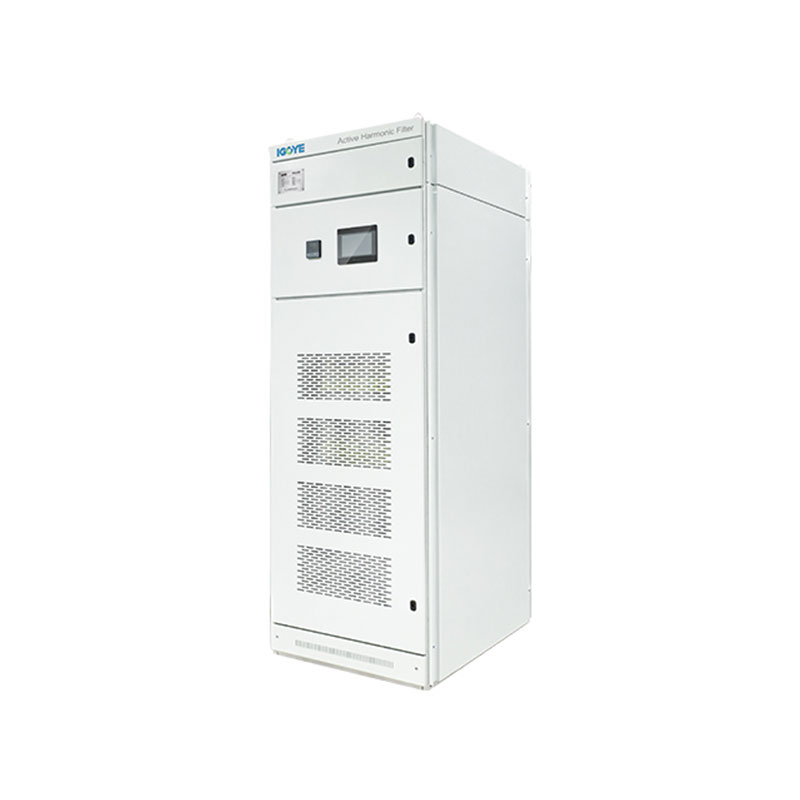

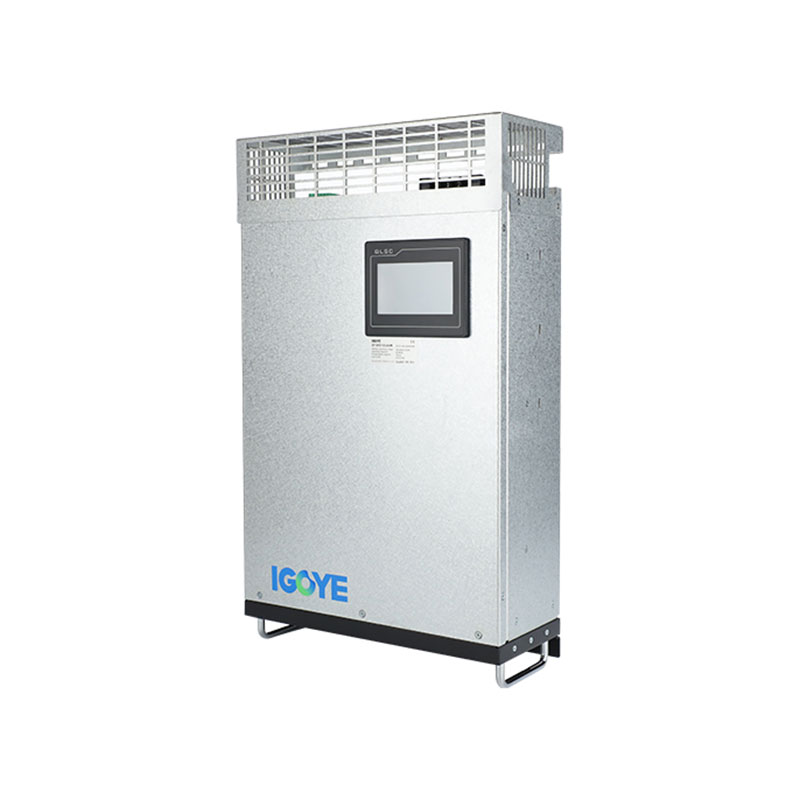

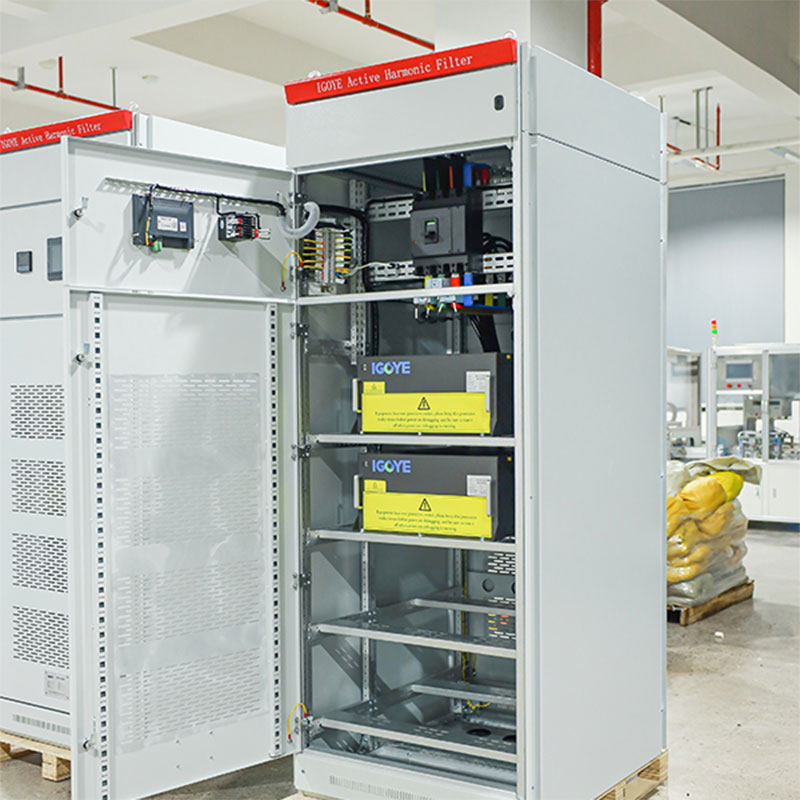

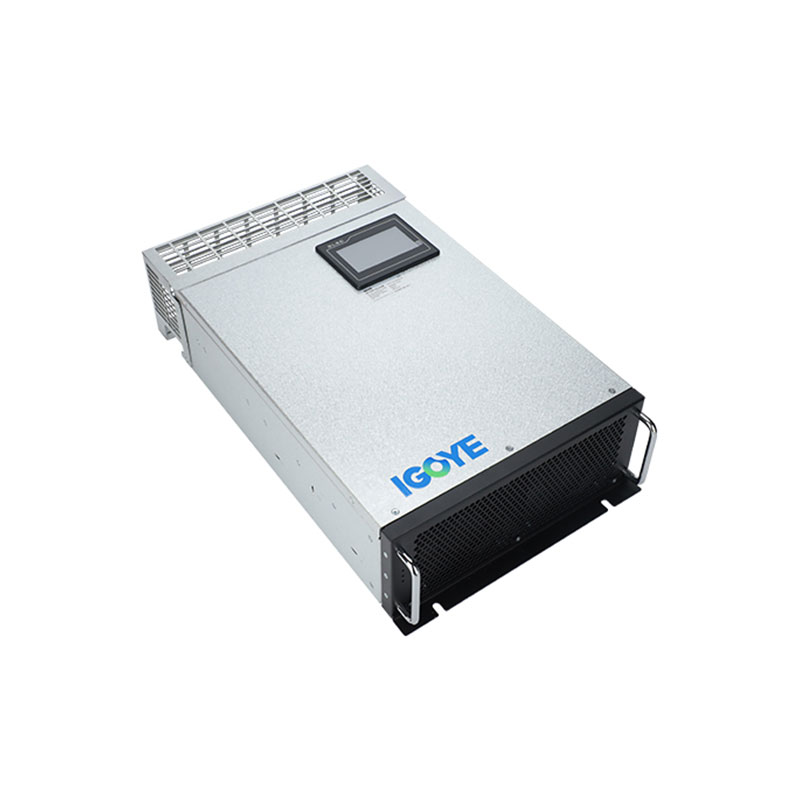

The Three-phase three-wire Wall-mounted Active Harmonic Filter (APF) dynamically mitigates harmonic currents, improving power quality in three-phase systems. This wall-mounted unit utilises advanced DSP+CPLD digital control and a three-level topology for precise harmonic compensation. It offers a wide filtering range (2nd to 50th harmonics), high filtering efficiency (up to 95%), and fast response time (<10ms). Modular design allows for scalable solutions through parallel connection. The filter also addresses three-phase imbalances and includes comprehensive protection features. Available in various current ratings (25A to 150A) and voltage levels (220V to 690V).
Model description:
| GY | AHF | 0.4 | 50A | / | 3L | W |
| Enterprise code | Active Harmonic Filter |
Voltage level 0.22:220V 0.4:380V±20% 0.5:500V±20% 0.69:690V±20% |
Rated Capacity（kvar） 25/50/75 /100/150A | 3L:Three-phase three-wire | W:Wall-mounted |
Features:
● Use DSP+CPLD all digital control core, three-level topology technology,
advanced harmonic detection algorithm and PWM control strategy to achieve
accurate compensation of harmonic current.

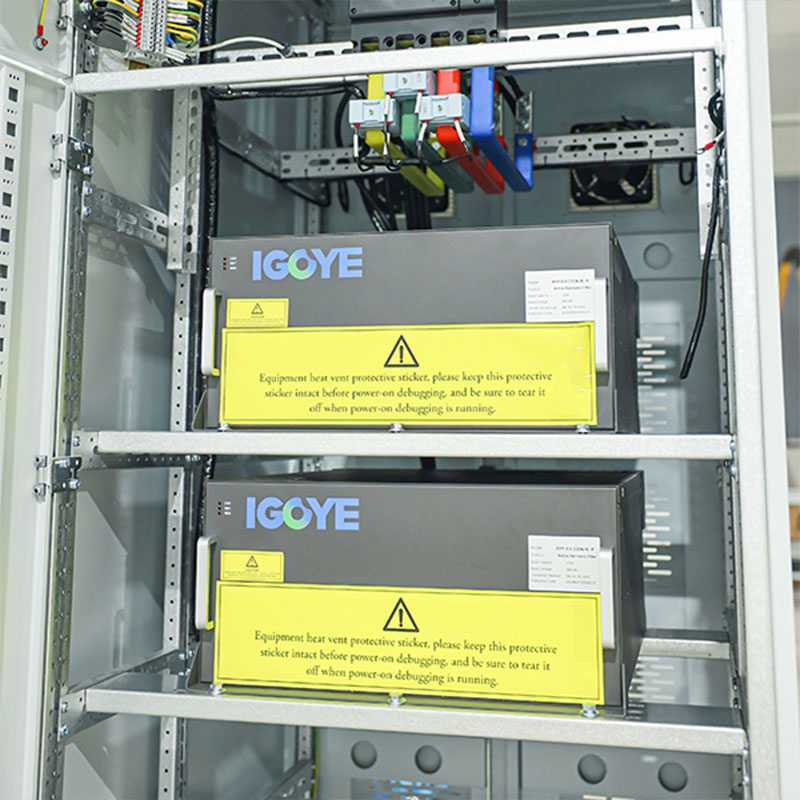

● Adopt modular design, which facilitates parallel connection of multiple
modules, takes up little space and is easy to maintain.
● The structural design of independent air ducts and independent warehouses
ensures the stable operation of the equipment.
● It can filter harmonics in a wide range of harmonics, from 2 to 50
harmonics, and solve the problem of three-phase unbalance at the same time.
● The harmonic filtering rate is high. If the capacity allows, the harmonic
current filtering rate can be as high as 95%. Set 100% current limiting output
to ensure long-term stable operation of the equipment.
Applications:
Three-phase three-wire Wall-mounted Active Harmonic Filters are ideal for various applications requiring precise harmonic mitigation:
● Data Centres: Protecting sensitive equipment from harmonic
distortion.
● Hospitals: Ensuring reliable power for critical medical
devices.
● Industrial Environments: Improving power quality in
manufacturing processes, including petrochemical, pharmaceutical, steel, and
semiconductor industries.
● Textiles and Light Industry: Enhancing efficiency and
reducing harmonic-related issues in textile and light industrial settings.
● Renewable Energy Systems: Integrating renewable energy
sources while maintaining grid stability.
Three-phase three-wire Wall-mounted Active Harmonic Filters offer a compact and effective solution for optimising power quality in diverse applications.
Technical Parameters:
| 220V series | 380V series | 500V series | 690V series | ||
| Altitude | < 2000m, above 2000m, derate according to GB/T3859.2 | ||||
| Ambient temperature | -20～+50℃ | ||||
| Relative humidity | ≤90%, no condensation on the surface when the monthly minimum temperature is 25℃ | ||||
| Pollution level | Level III below | ||||
| Operating Voltage | AC220V±20% | AC380V±20% | AC500V±20% | AC690V±20% | |
| Working frequency | 50Hz±5% | ||||
| Compensation current | 25A | 25/50/75/100 /150A | 100A | 100A | |
| Grid structure | L/N | 3P3W/3P4W | 3P3W/3P4W | 3P3W/3P4W | |
| Number of units connected in parallel | Ulimited | ||||
| Overall machine efficiency | ≥97% | ||||
| Grid structure | 32kHz | 16kHz | 12.8kHz | 12.8kHz | |
| Compensation range | 2～50times, single compensation rate is adjustable | ||||
| Function selection | Reactive power | Reactive power, reactive power + asymmetry | |||
| Reactive power compensation rate | ≥95% | >92% | |||
| Neutral filtering capability | Neutral line filtering capability is 3 times that of phase filtering capability | ||||
| Full response time | ＜10ms | ＜40ms | ＜40ms | ＜40ms | |
| Noise | ≤60dB | ≤60dB | ≤65dB | ≤65dB | |
| Control method | 2-way RS485 interface (supports GPRS/WIFI) | ||||
| Protection | Overload, software/hardware overcurrent, grid overvoltage and undervoltage, power failure, overtemperature, frequency abnormality protection, etc. | Overload, software/hardware overcurrent, grid overvoltage and undervoltage, grid voltage imbalance, power failure, overtemperature, frequency abnormality, short circuit protection, etc. | |||
| Installation method | wall-mounted | ||||
| Incoming line | upper incoming（wall-mounted） | ||||
| Protection level | IP20 | ||||
Model& Specification:
| Models | ||||
|---|---|---|---|---|
| Model Number | Rated Current(A) | System voltage (V) | Dimensions (D*W*H) | Cooling method |
| GY APF-0.22-25A/2L-R/W | 25 | 220 | 220*330*160mm | Forced air cooling |
| GY APF-0.4-25A/4L-R/W | 25 | 380±20% | 460*490*89mm | |
| GY APF-0.4-50A/4L-R/W | 50 | 380±20% | 460*490*89mm | |
| GY APF-0.4-75A/4L-R/W | 75 | 380±20% | 500*510*190mm | |
| GY APF-0.4-100A/4L-R/W | 100 | 380±20% | 500*550*240mm | |
| GY APF-0.4-150A/4L-R/W | 150 | 380±20% | 500*550*240mm | |
| GY APF-0.5-100A/4L-R/W | 100 | 500±20% | 495*675*275mm | |
| GY APF-0.69-100A/4L-R/W | 100 | 690±20% | 495*675*275mm | |
